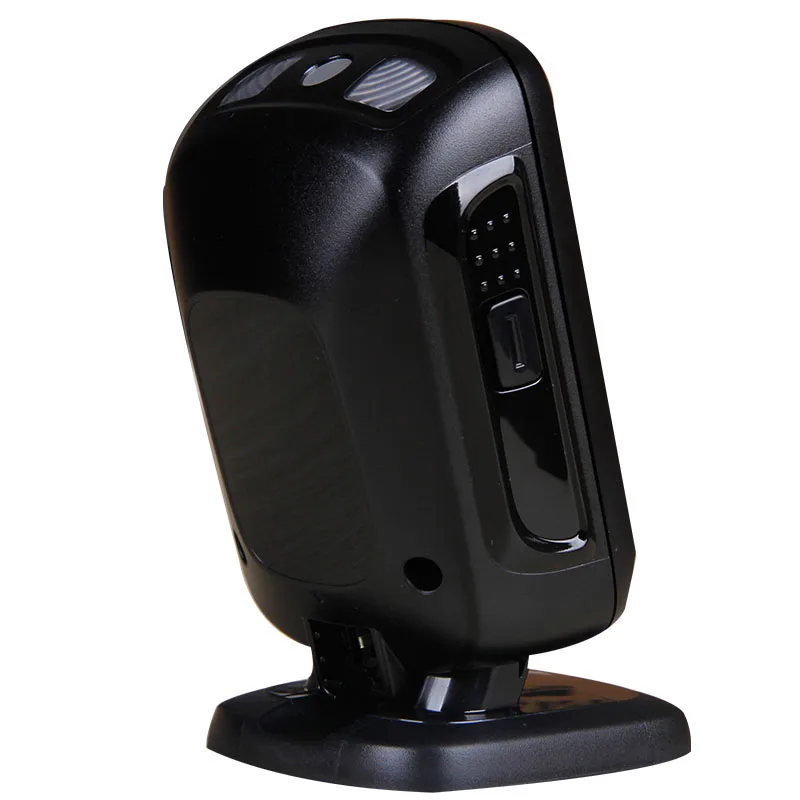

GENUINE DS9208/DS9308 QRCODE SCANNING PLATFORM PHARMACY SCAN CODE GUN SUPERMARKET MOBILE PAYMENT SCANNER

3 Sold in last 10 Hours
136294606017728_265155041
$120.60
Los gastos de envío se calculan en la pantalla de pagos.
Subtotal: $120.60
Add to Wish List Remove Wish List
Customers are viewing this product

DS9208 QR code scanning platform pharmacy scan code gun supermarket mobile payment scanner

PHYSICAL CHARACTERISTICS
Dimensions
5.512 in. H x 3.232 in. W x 3.150 in . D 14.0 cm H x 8.21 cm W x 8.0 cm D
Weight
9.5 oz./269 g
Voltage and Current
Idle: 5 ± 10% VDC @ 150ma average Scanning: 5 ± 10% VDC @ 230ma average
Nominal Working Range
Code 39 ' 5 mil:0 ' 4.5 in. (0 ' 11.4 cm)
UPC/EAN ' 10 mil ( 80%):0 ' 8.5 in. (0 ' 21.6 cm)
UPC/EAN ' 13 mil ( 100%):0 ' 10.5 in. (0 ' 26.7 cm)
PDF417 ' 6.6 mil:0 ' 3.8 in. (0 ' 9.6 cm)
Datamatrix ' 10 mil:0 ' 4.7 in. (0 ' 11.9 cm)
Minimum Resolution
Code 39 ' 4 mil
UPC ' 7.8 mil (60%)
PDF417 ' 5 mil
Datamatrix ' 7.5 mil
QR Code ' 7.5 mil
PERFORMANCE CHARACTERISTICS
Light Source
Aiming pattern: single dot, 625nm LED
Illumination: 630nm LEDs
Imager Field of View
46° Horizontal x 29.5° Vertical
Roll
Pitch
Yaw
360°
± 65°
± 60°
Print Contrast
25% minimum reflective difference
Swipe Speed (Vertical Read Rate)
Up to 90 in./2.3 m per second
IMAGING CHARACTERISTICS
Graphics Format Support
Images can be exported as Bitmap , JPEG or TIFF
Image Transfer Speed
USB 2.0: Up to 12 Megabits/ second RS-232: Up to 115 kb/second
Image Transfer Time
Typical USB application is ~0.2 seconds with a compressed JPEG of 100kb
Image Quality
120 PPI on a 4 x 6 in./10.2 x 15.2 cm document @ 4.7 in./11.9 cm
USER ENVIRONMENT
Operating Temp.
32° F to 104° F / 0° to 40° C
Humidity
5% to 85% RH (non-condensing)
Drop Spec
Withstands multiple 5 ft./1.5 m drops to concrete
Ambient Light Immunity
Immune to natural and artificial ambient light (i.e. sunlight, incandescent, fluorescent,mercury vapor, sodium vapor)








productstorage750750750feedback

Application



 Inventory management                             Logistic transportation



Wax application 1



Supermarket Label                                     Garment tag



wax application 2

Outdoor                                                      Medical

Wax/Resin Application
