43 INCH INFRARED TOUCH SCREEN FRAME, MULTI-TOUCH PANEL ,IR TOUCH FRAME OVERLAY KIT FOR SMART TV

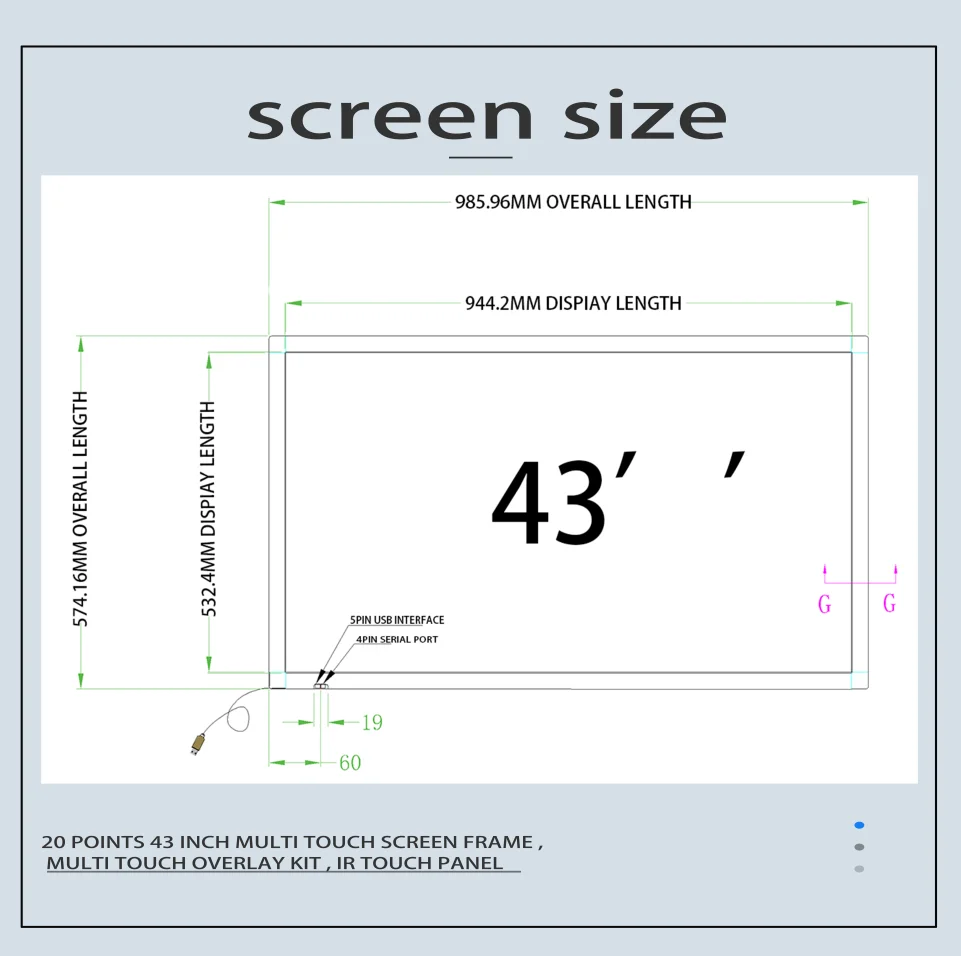

Size Guide
×
Factory direct sales, our advantage is that the border is thinner and narrower.
| Specification of Infrared Touch Screen |
|
| Touch Screen Size | 43" |
| Touch Points | 20-point touch |
| Minimum Recognition Point Size | 4mm*4mm |
| Supporting resolution | 32768×32768 |
| Touch Response Time(Multi touch) | 10-15ms |
| Touch Response Time(One touch) | 7ms |
| Input method | Any opaque touches, such as fingers, brushes, etc. |
| Calibration | 4-point calibration |
| Number of clicks | nfinite times |
| Touch pressure | No pressure requirement |
| Interface type | 1.5 m USB cable receptacle, the receptacle 5P |
| Line length | 1.5m |
| Frame Material | Aluminium alloy |
| Glass Material | Toughened glass |
| Characteristic | Easy installation, strong compatibility |
| Scanning frequency | >110Hz |
| communication interface | USB 2.0 |
| Power supply mode | USB 5.0V |
| Working Voltage and Current | 4.75~5.25V , ≤200mA |
| Humidity | Up to 90% RH from 0°C to +40°C, non-condensing |
| Temperature Range | Working temperature:-10℃~50℃,Storage temperature:-20℃~60℃ |
| LED Lifetime | 60000hours |
| Fault-tolerant | Able to work if less than10% non-consecutive sensors are damaged |
| Anti-light Interference | Excellent |
| ESD | EN 6100-4-2 2008:3 level.4KV contact discharge and8KV air discharge |
| Firmware Upgrade | USB Upgrade: Windows 8,Windows 7 |
| Support OS(Multi touch) | Windows10,Windows8,Windows7,Andriod |
| Support OS (One touch) | WindowsXP,MacOS.Linux |
Infrared touch frame Features:
2.High touch accuracy and smooth writing.
3.Driver-free support for multiple operating systems.
4.Long service life, maintenance-free.
5.Toughened glass material, with high transmittance, strong stability.
6.Strong anti-jamming ability, anti-static performance of industrial ESD.
7.Response speed (less than 15 milliseconds), sensor discontinuous damage 10%, can still work.
8.No special touch tools are needed, just opaque objects.
